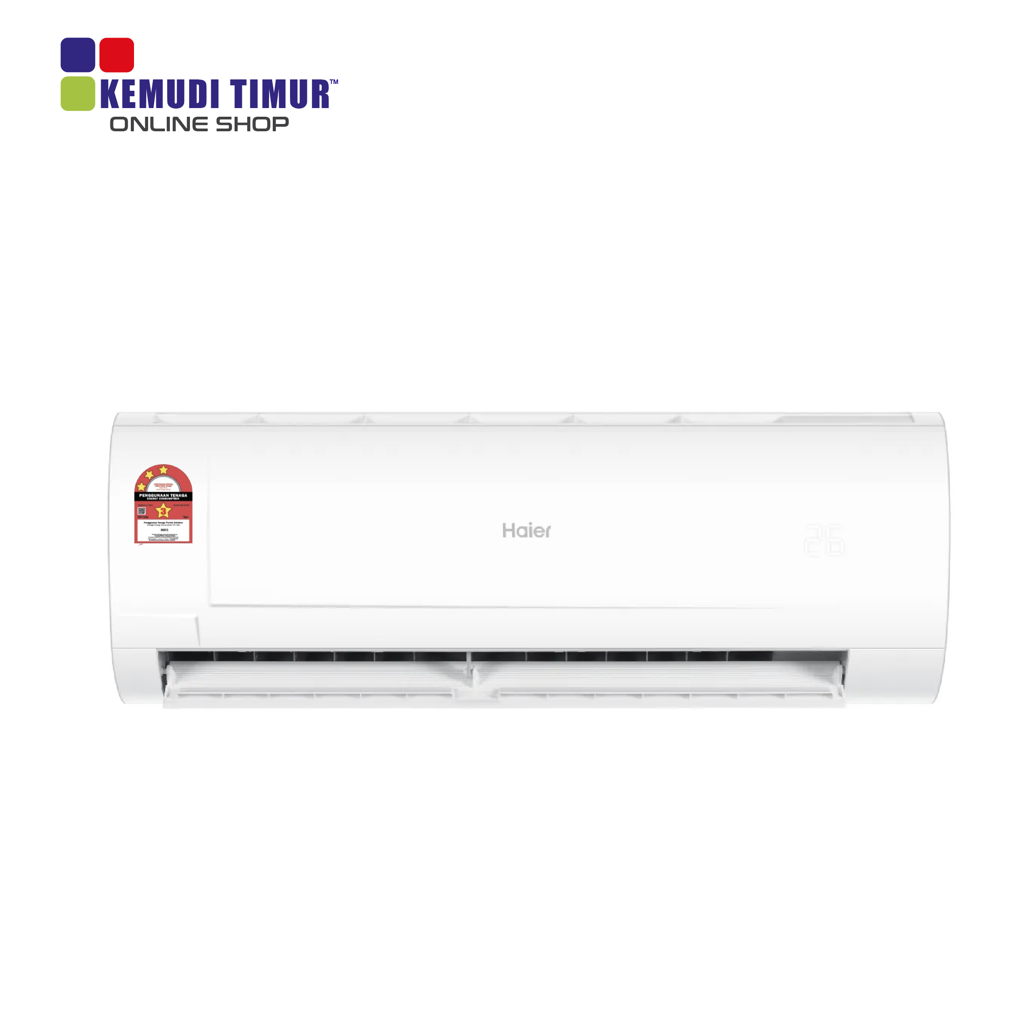

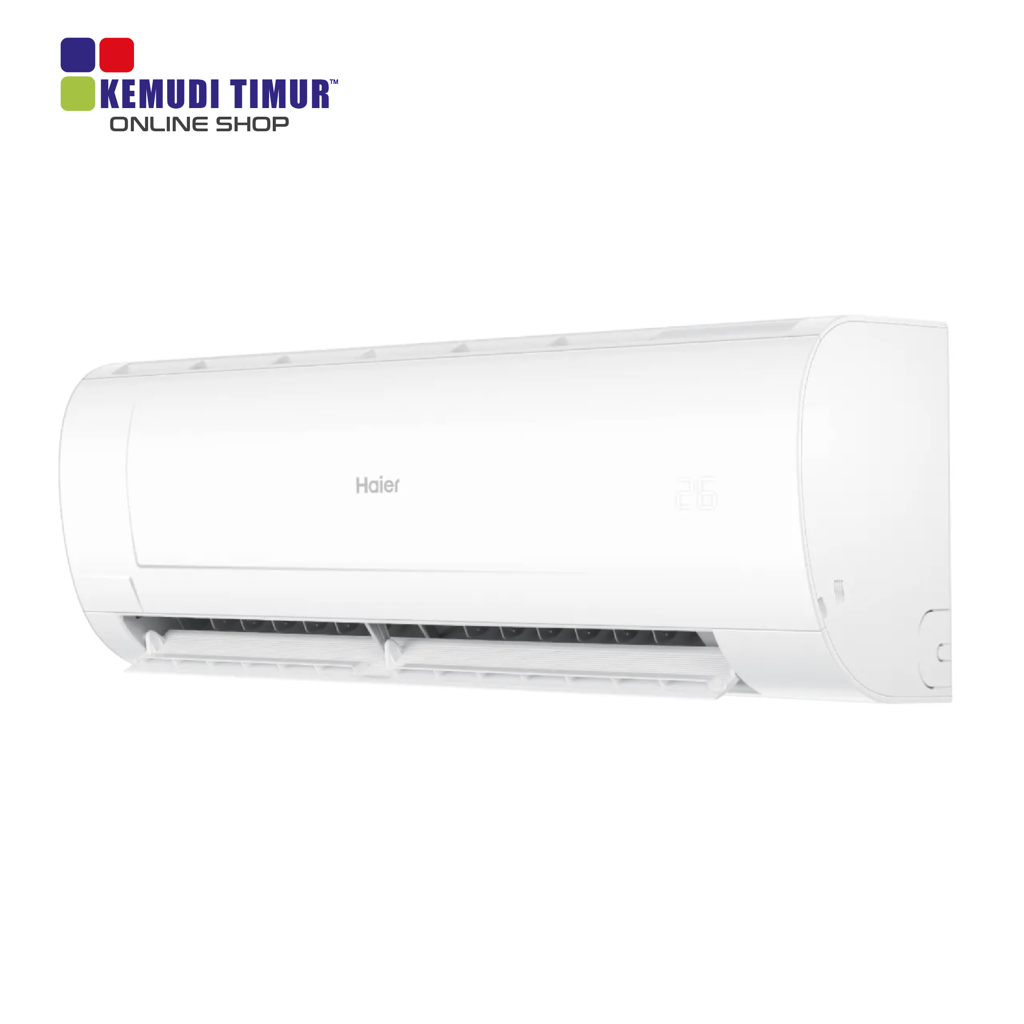

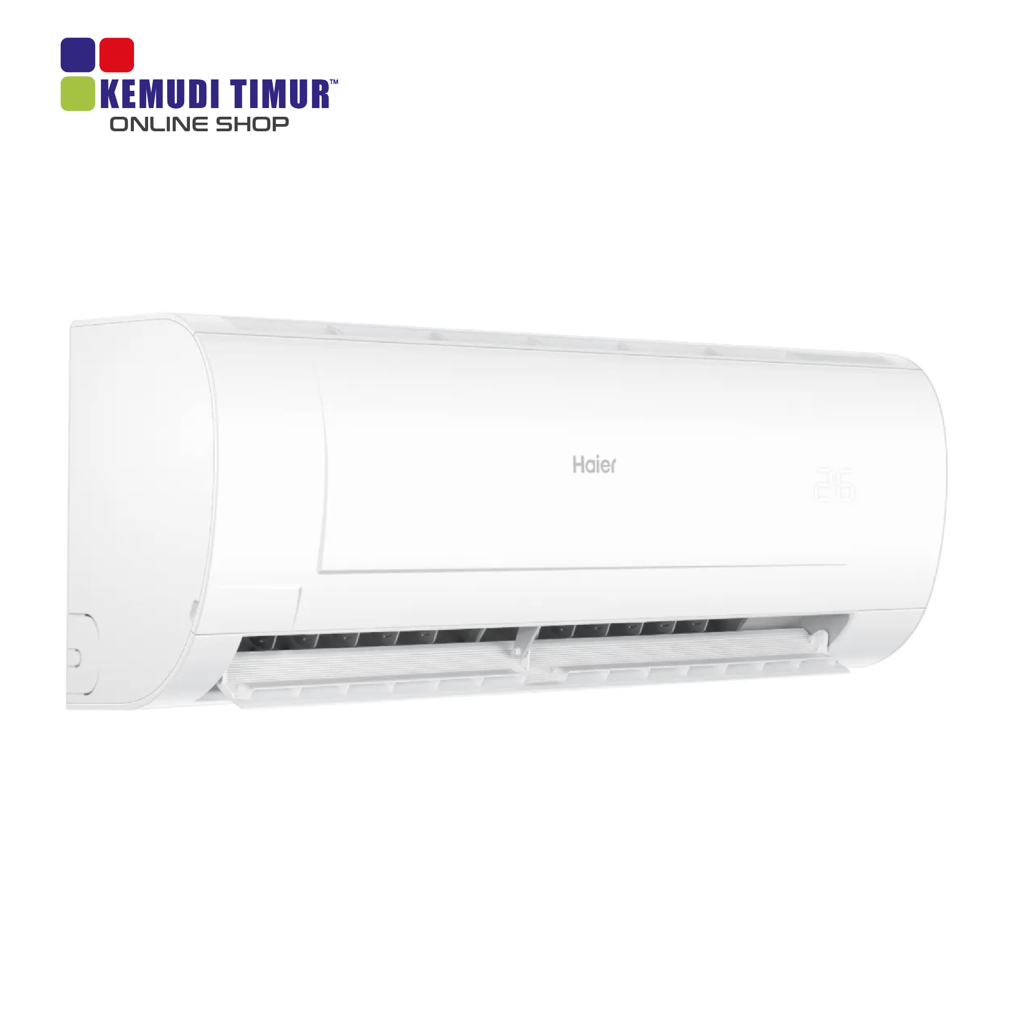

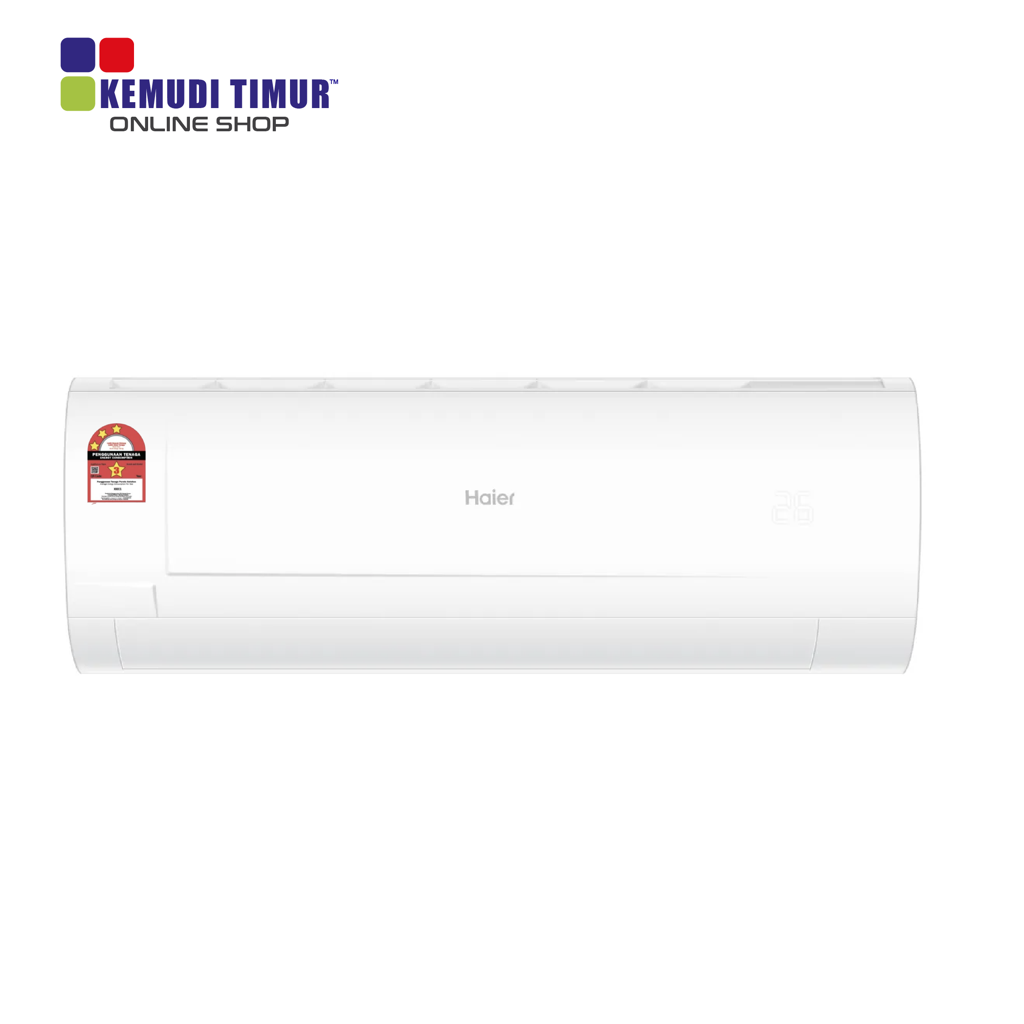

HAIER AIRCOND 1HP WALL R32 NON-INVERTER | HSU10LPB23

Features:

• Nano Aqua Ionizer
• Triple Airflow
• Anti Corrosion

Specifications:

Compressor:

• Type: Non Inverter

Model:

• Indoor/Outdoor: HSU-10LPB21

Capacity:

• Capacity (W): 2812
• Capacity (BTU): 9600
• Power input (W) Cooling: 845
• CSPF: 3.40
• Star Rating: 3
• Running current (A) Cooling: 3.72
• Power supply (Ph/V/Hz): 1/220-240/50
• Air circulation (m³/h): 680
• Moisture removal (10¯³m³/h): 1.4
• Refrigerant: R32
• Refrigerant pipe (mm) Liquid side diameter: 6.35
• Refrigerant pipe (mm) Gas side diameter: 9.52

INDOOR:

• Net dimension (mm) W/D/H: 805/200/292
• Package dimension (mm) W/D/H: 874/270/363
• Net weight (kg): 9.0
• Gross weight (kg): 11.0
• Noise [dB(A)] (Hi/Mid/Lo/So): 40/37/34/29

OUTDOOR:

• Net dimension (mm): 695/245/430
• Package dimension (mm): 810/354/490
• Net Weight (kg): 22.5
• Gross Weight (kg): 25.5
• Noise [dB(A)]: 53
• Max Pipe Length(m): 15
• Max Pipe Height(m): 10
• Chargless Piping Length(m): 5
• Amount of additional Refrigerant (g): 20
• Amount of Gas(g): 430
• Power Supply: indoor
• Metering Device: capillary tube
